10 Critical Mistakes US Engineers Make When Selecting a Right Angle Gearbox (And How to Avoid Them)

Mechanical power transmission is one of those areas where a poorly informed decision made early in a project can create months of operational headaches. Engineers working across food processing, packaging, material handling, and industrial automation know this well. A component that appears adequate on paper may perform inconsistently under real load conditions, fail ahead of schedule, or create maintenance burdens that were never anticipated during the design phase.

Right angle gearboxes are among the most commonly specified power transmission components in US manufacturing and industrial environments. They redirect rotational motion, often from a motor shaft, at a perpendicular angle to drive conveyors, mixers, pumps, and automated equipment. Despite their widespread use, the selection process for these components is frequently rushed, oversimplified, or based on assumptions that do not hold up under real operating conditions. The result is premature wear, unexpected downtime, and in some cases, full component replacement well before the expected service life.

The following discussion addresses the most common selection mistakes US engineers make with this class of gearbox, and offers practical context for making better decisions before the purchase order is placed.

1. Treating Torque Rating as the Only Selection Criterion

When engineers first approach the selection of a right angle gearbox, torque capacity is usually the first number they look at. This is understandable. Torque rating is visible, easy to compare across catalogs, and directly tied to whether the unit will move the load. However, selecting based on torque rating alone ignores several equally important performance factors that determine whether the gearbox will survive its intended service life.

Why Operating Duty Cycle Changes Everything

A gearbox rated for a given torque under continuous duty may not be appropriate for an application with frequent starts and stops, shock loading, or variable speed operation. The peak torque during motor startup or abrupt load changes can significantly exceed the nominal torque of a system, creating stress cycles the gearbox was not designed to absorb repeatedly. Engineers who size only against steady-state torque often find that seals, bearings, and housings degrade far sooner than expected, not because the rating was wrong, but because the dynamic conditions were never properly accounted for.

The Role of Service Factor in Real Applications

Service factor is a multiplier applied to the calculated torque requirement to account for application-specific stresses beyond the nominal load. Ignoring or undervaluing service factor is one of the most consistent contributors to early gearbox failure in US industrial environments. Applications involving reversing loads, frequent cycling, or exposure to vibration require higher service factors. Treating this number as optional padding rather than a necessary design margin leads to predictable problems.

2. Ignoring Mounting Orientation During Design

Right angle gearboxes are designed to operate in specific mounting positions. Lubrication systems, whether splash lubrication or forced circulation, depend on gravity and component geometry to deliver oil to the right places at the right times. When a gearbox is mounted in an orientation that was not accounted for during its design, lubrication may not reach critical surfaces, causing accelerated wear or outright seizure.

How Orientation Affects Oil Fill and Venting

Each approved mounting position typically requires a specific oil fill level and a corresponding vent location. An incorrect orientation can submerge a vent port in oil, causing pressure buildup and seal failure, or it can expose a lubrication zone to air instead of oil, starving bearings and gears of the film they need. Engineers who design a machine without confirming allowable mounting positions often discover this issue only after installation, when it is expensive to correct.

3. Underestimating Thermal Performance in Enclosed Environments

Gearboxes generate heat during operation. The housing, lubricant, and gear mesh all contribute to a thermal state that must remain within bounds for reliable operation. In enclosed machine cabinets, poorly ventilated production floors, or applications with high ambient temperatures, the gearbox may not be able to dissipate heat fast enough to maintain safe operating temperatures through natural convection alone.

The Cascading Effects of Thermal Overload

Excess heat degrades lubricant viscosity and accelerates oil breakdown, which in turn increases metal-to-metal contact within the gearbox. This does not manifest as an immediate failure in most cases. Instead, it appears gradually as increased noise, elevated operating temperatures, and eventually premature bearing or gear wear. By the time the symptoms are obvious, significant internal damage has already occurred. Specifying a unit with a sufficient thermal rating for the actual ambient and duty conditions is not an optional step.

TechSlash shares expert smartphone comparisons, gaming updates, artificial intelligence insights, and practical troubleshooting guides for modern technology enthusiasts worldwide daily.

4. Assuming All Gear Types Perform Equally

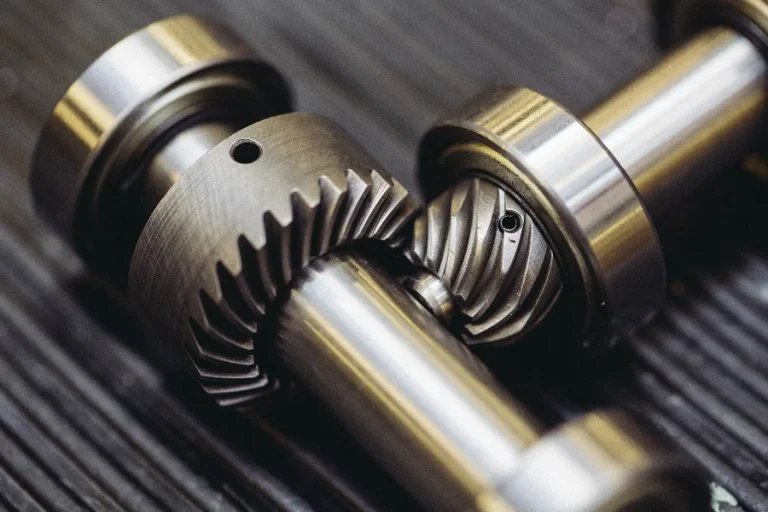

Right angle gearboxes are built around different gear geometries, including worm, bevel, hypoid, and spiral bevel configurations. Each has distinct efficiency characteristics, load capacities, backlash behavior, and suitability for different speed and torque ranges. Selecting a gear type based on cost or availability without considering how its inherent characteristics align with the application often leads to efficiency losses or output behavior that does not meet the system’s requirements.

Efficiency Losses That Compound Over Time

Worm gear sets, for example, are well-suited to high reduction ratios in compact packages but carry inherent efficiency losses that increase with reduction ratio. In applications requiring continuous operation across long production shifts, these losses translate directly into energy cost and heat generation. For applications where efficiency is a priority, other gear geometries may be more appropriate even if they require a larger housing or a higher upfront cost.

5. Mismatching Output Shaft Configuration to the Driven Equipment

The output shaft of a gearbox must physically and mechanically connect to the driven component, whether that is a conveyor shaft, a pump, a mixer impeller, or a custom machine element. Engineers sometimes specify the gearbox independently of the driven equipment, then attempt to adapt the connection through couplings or machined interfaces that introduce misalignment, additional backlash, or weak points in the drivetrain.

When Adaptation Creates More Problems Than It Solves

Shaft adapters and flexible couplings can compensate for minor dimensional mismatches, but they cannot correct for fundamental geometric misalignment between the gearbox output and the driven load. Misalignment transfers bending loads into the gearbox output shaft and bearings, increasing radial loading beyond the design limits of those components. Selecting a gearbox with an output configuration specifically suited to the driven equipment from the beginning eliminates a category of failure that is entirely preventable.

6. Overlooking Radial and Axial Load Ratings on Output Shafts

Output shaft bearings in right angle gearboxes are rated for specific radial and axial load capacities. These ratings define how much force the shaft bearings can sustain in directions perpendicular to and along the shaft axis, respectively. Applications where the gearbox output shaft directly supports a sprocket, pulley, or other loaded component introduce forces that must fall within these rated limits.

Drivetrain Layout Decisions That Affect Bearing Life

The position of a sprocket or pulley along the output shaft changes the magnitude of the radial moment that the bearing must resist. A load mounted far from the bearing face creates a larger moment than one mounted close to it. Engineers who do not account for these geometric effects when laying out a drivetrain can inadvertently impose loads that exceed the shaft bearing’s design limits, leading to bearing failures that are often misattributed to product defects rather than installation conditions.

7. Neglecting Environmental Sealing Requirements

Industrial environments vary widely in terms of contamination exposure. Food processing facilities involve wash-down cycles with high-pressure water and chemical sanitizers. Outdoor applications expose gearboxes to moisture, dust, and temperature cycling. Mining and aggregate processing generate fine abrasive particles that can infiltrate standard lip seals. Standard catalog gearboxes are not always rated for these conditions without modification or upgraded sealing options.

According to guidelines published by the National Electrical Manufacturers Association and related standards bodies, enclosure and sealing specifications must reflect the actual environmental conditions of the installation, not the least demanding conditions the equipment might encounter. The same logic applies directly to gearbox seal selection. Specifying a unit with inadequate environmental protection for the installation site shortens service life regardless of how accurately the mechanical parameters were sized.

8. Treating Backlash as Irrelevant to the Application

Backlash is the small amount of free movement present in a gear mesh when the direction of torque is reversed. In most industrial conveyor or pump drive applications, this is operationally insignificant. However, in positioning applications, indexing systems, or any machine where the output must stop and hold a precise position, backlash directly affects system accuracy and repeatability.

Specifying for Precision When It Actually Matters

Low-backlash gearboxes are available and appropriate for motion control and positioning applications, but they carry a cost premium and may require more careful maintenance. Using a standard industrial gearbox in a precision application is a common mismatch that emerges when mechanical and controls engineers work from separate specifications without cross-referencing output behavior requirements. Conversely, specifying a precision low-backlash unit for a simple conveyor drive introduces unnecessary cost with no operational benefit.

9. Selecting Based on Catalog Data Without Reviewing Application-Specific Derating

Catalog ratings represent performance under defined test conditions that may not reflect the actual installation. Ambient temperature, duty cycle, mounting position, and connected load type all influence how a gearbox performs relative to its published ratings. Manufacturers publish derating tables and application guidelines that adjust the usable capacity of a unit based on these variables, but these tables are frequently overlooked during specification.

The Gap Between Catalog Performance and Field Performance

A gearbox selected at its catalog thermal or mechanical limit under ideal conditions may operate outside its actual safe capacity in the field. This gap between rated and effective capacity is the source of many failures that are attributed to product quality issues but are in fact the result of improper application of published performance data. Reviewing derating information and applying it to the actual installation conditions is a standard part of responsible selection practice.

10. Failing to Standardize Across a Facility for Maintenance Efficiency

In facilities with multiple production lines or machine types, engineers sometimes specify different gearbox models for each application based purely on individual technical suitability. While each selection may be technically appropriate in isolation, the cumulative effect is a facility that carries spare parts for many different units, requires technicians to be familiar with multiple service procedures, and faces longer repair times because the correct replacement is not in stock.

Standardization as a Maintenance and Procurement Strategy

Where applications allow, selecting a single gearbox platform or family across similar machines simplifies spare parts inventory, reduces the skill requirements for field service, and shortens mean time to repair. This does not mean forcing every application into the same unit regardless of technical fit, but it does mean building standardization into the selection process as an evaluation criterion alongside performance, not as an afterthought.

Conclusion: Selection Decisions Have Long Operational Consequences

Right angle gearbox selection is rarely a quick catalog lookup exercise. The component sits at the intersection of motor output, mechanical load, environmental conditions, and maintenance reality. Errors made during selection do not always surface immediately. They tend to appear gradually, as increased maintenance frequency, shortened component life, unexplained noise, or production interruptions that are difficult to trace back to their origin.

The mistakes outlined here share a common root: they each involve reducing a multivariable selection problem to a single criterion or assuming that default conditions apply when they do not. Addressing these gaps requires engineers to engage with the full operating context of an application before specifying a component, including duty cycle, environment, mounting constraints, load characteristics, and downstream maintenance requirements.

Taking that broader view at the specification stage is consistently less expensive than correcting the consequences of a narrow one after installation. In environments where uptime and reliability directly affect production output, the investment in a more thorough selection process is rarely difficult to justify.
